Lumber Conveying

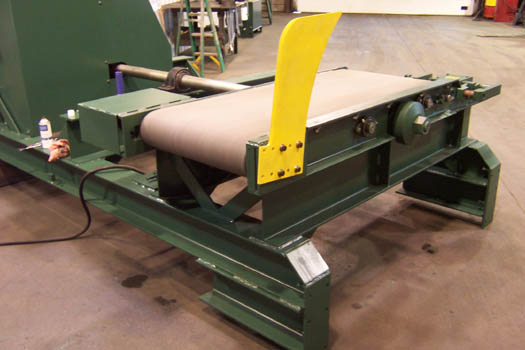

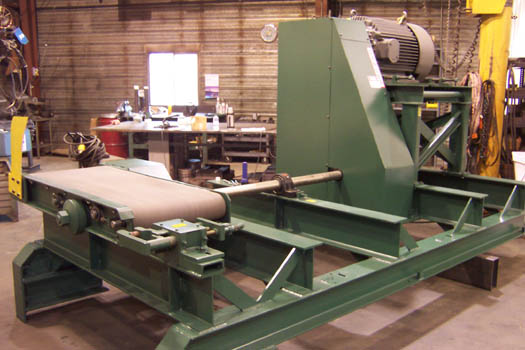

Husk Offbearer Belt
The Cleereman Offbearer was designed to convey slabs, lumber, cants and other waste away from the headsaw for quick and safe removal with little effort. When combined with our drop belt, it provides optimal performance for removing unwanted stock for the production area. The stock offbearer will fit all Cleereman Husks and many others with little to no modifications needed.
Options
- Left or Right Hand Mill
- 3 HP Drive Package
- Vulcanized Endless Belt
Specifications
| Width: | 18″, 22″, & 24″ | |
| Height: | 7 3/8″ Top of Belt | |
| Length: | 69 1/2″ | |
| Belt: | PVC COS 150# | |
| Bearings: | Browning Medium Duty Roller Bearings | |
| AMI Cartridge Insert | ||
| Speeds: | Standard 250 FPM | |
| Belt Pulley: | 5 1/2″ O.D with 3/8″ Wall Center Crowned | |
| Idler Pulley: | Removable 3″ O.D. Center Crowned | |
| Shafts: | 1 1/2″ Pulley Shafts | |
| Splitter Bar: | T1 Splitter Bar | |
| Saw Size: | Max Saw Size 60″ O.D. |
