Lumber Conveying
Rollcases

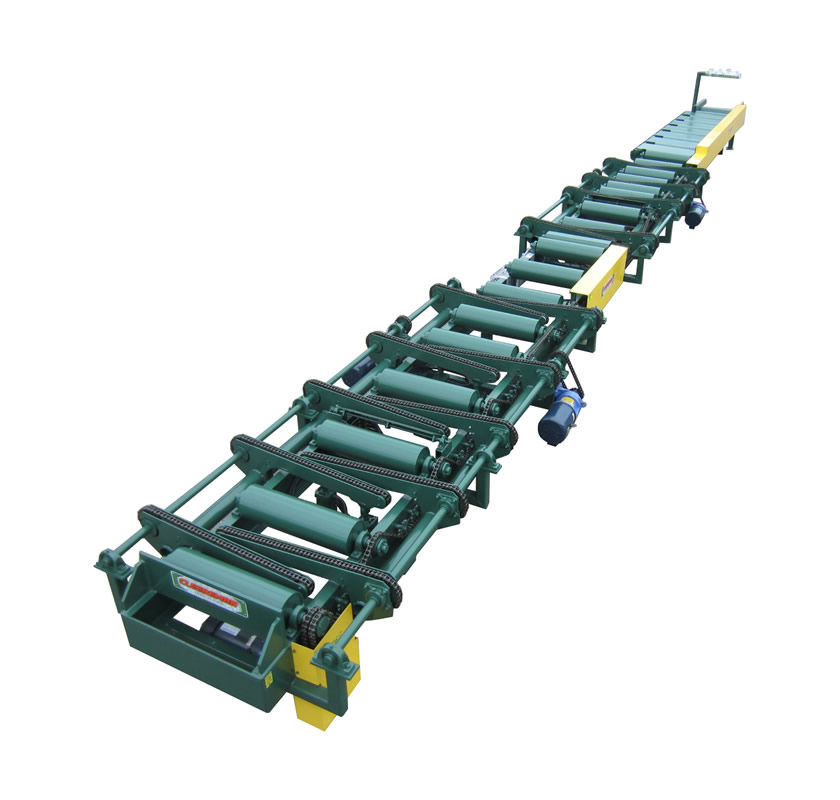

The Cleereman Rollcases are used to transfer lumber, cants, and lumber packs quickly and efficiently throughout all the sawmill processes. From Headrig lines, resaw runarounds, inspection rollcases, even ending lines, and tie sorts, we have all of your rollcase needs covered. With numerous options available, the sky is the limit for what these rollcases can move.
Options
- Any Length, Width, & Height available upon request
- Cant Turners – Chain
- Cant Turners – Banana Arms
- Hydraulic or Electric Drive (Electric Shown)
- Chain Sweeps or Jump Skids
- Stop Board
- Waterfall in from Transfer Deck
- 6 1/2″ or 8 1/2″ O.D. Rolls
Specifications
| Width: | Standard Roll Length 24″, 32″ and 36″ | |
| Height: | Standard 32″ Top of Roll | |
| Rolls: | 8 1/2″ O.D. with 1 15/16″ TG&P Shafts | |
| Bearings: | Browning Medium Duty Roller Bearings | |
| Drive Sprockets: | Standard #80 Double Single | |
| Speeds: | Standard: 200-250 FPM | |
| Drive Package: | Dodge Quantis gearbox w/ Marathon Motor | |
| Frame: | 10″ Channel with 3/8″ Web | |
| Fences: | 3 1/2″ High the entire length of Rollcase | |
| Dimensions: | Any Length, Width, & Height available upon request | |
| Cant Turners: | Chain | |
| Cant Turners: | Banana Arms | |
| Drive: | Hydraulic Drive | |
| Sweeps/Skids: | Chain Sweeps or Jump Skids | |
| Stop: | Stop Board | |
| Deck: | Waterfall in from Transfer Deck | |
| Rolls: | 6 1/2″ O.D. Rolls |
