Bandmills

Features & Benefits

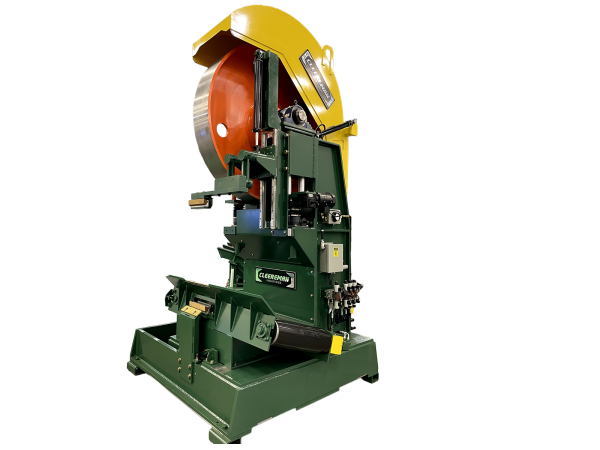

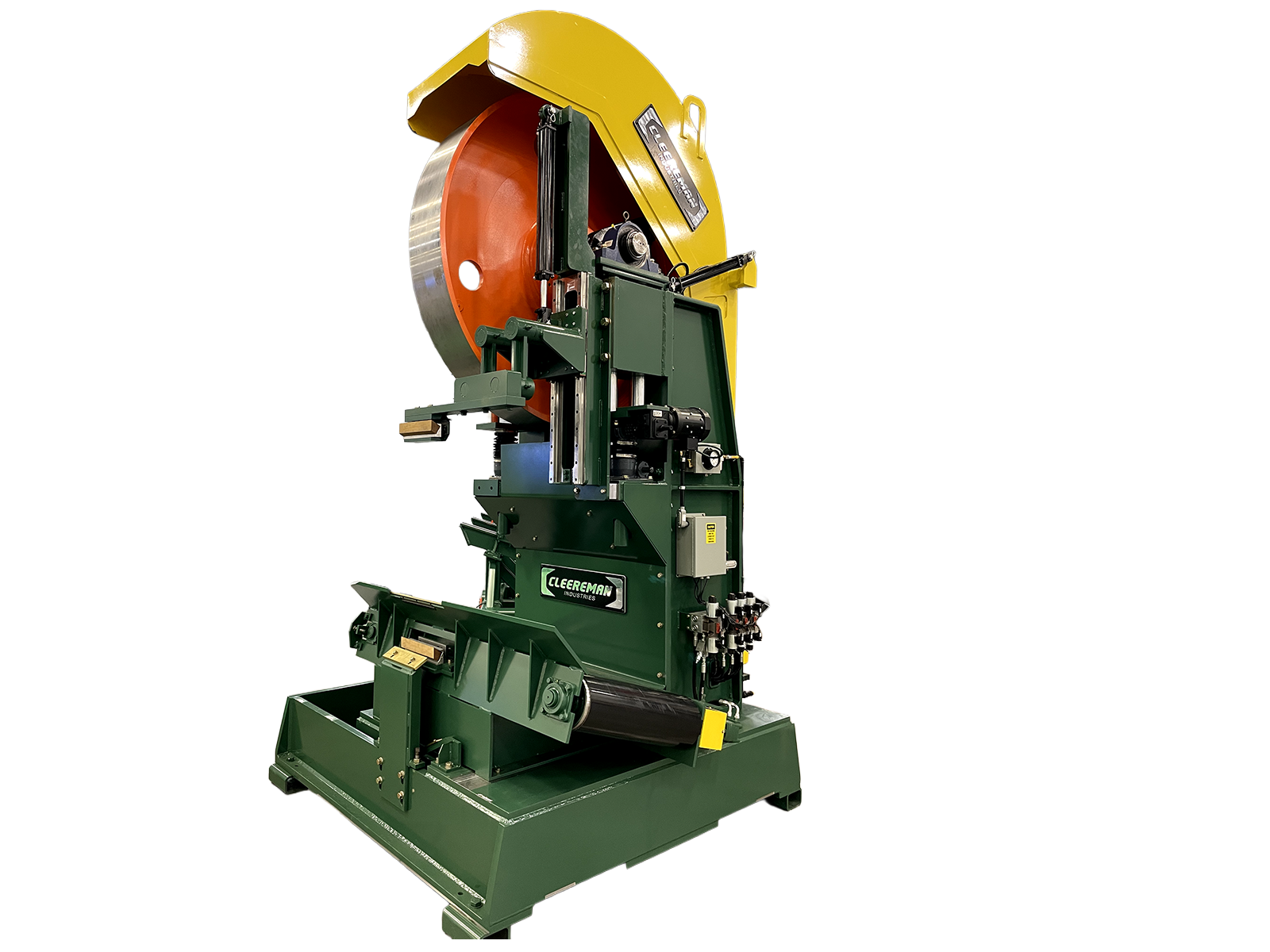

 CL54″ & CL62″ Premier Bandmills

• Double column frame construction from heavy-duty tubular steel.  Independent column & base
• Heavy duty Air Strain System
• Cartridge type pressure guide system with guide block dressing machine to resurface guides comes standard with Bandmill
• Ductile iron wheels
• Hydraulic operated top guide and top wheel lift with Timken bearings in lower and upper wheels
• Saw blade lubricating system
• Column retraction and extension over travel protection
• Off-bearing belt
• Guard

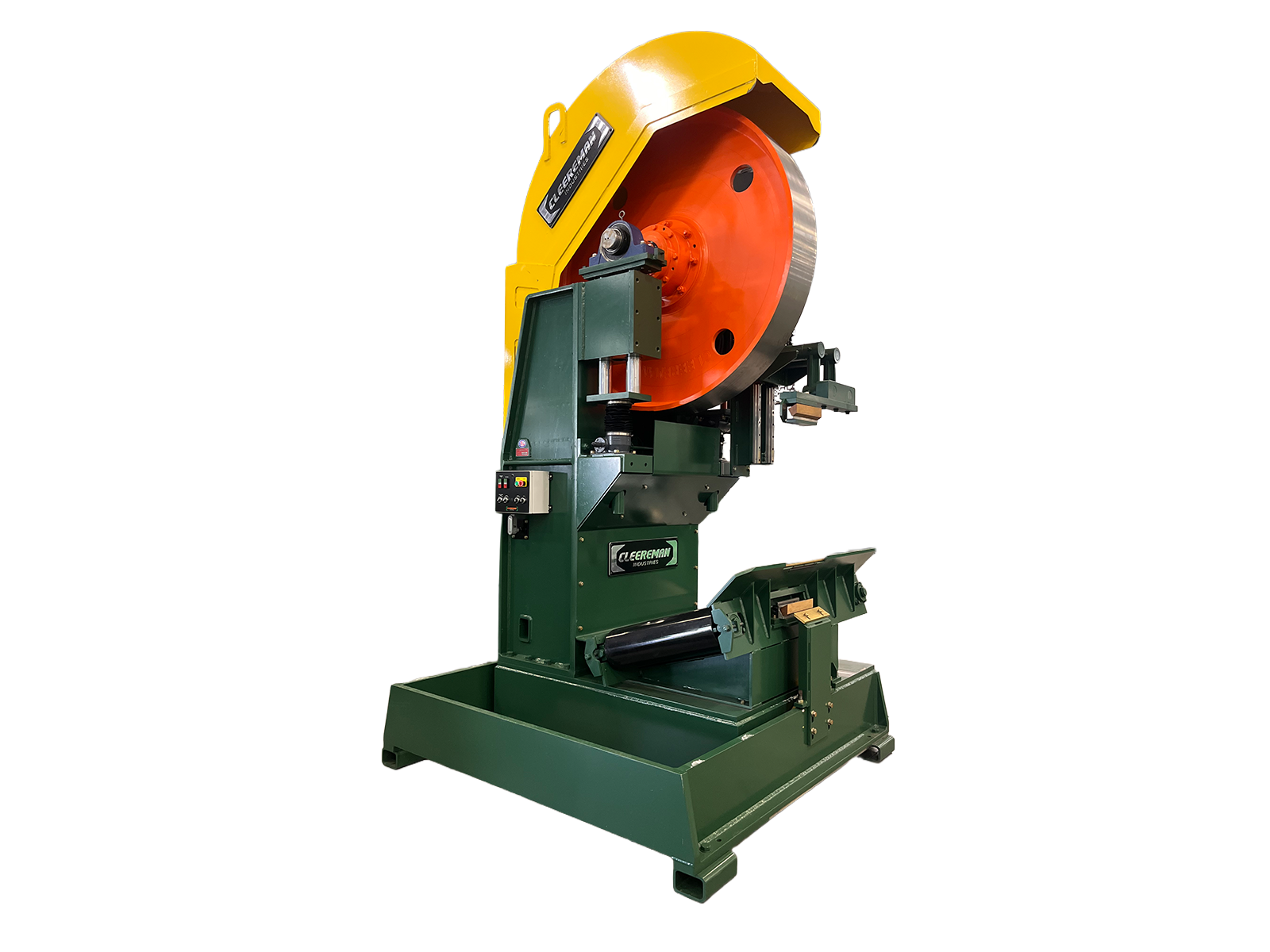

CL72″ & CL84″ Bandmills

Premier Extreme Duty, Double Column, Air Strain. Right or Left Hand, Single or Double Cut, with 6’ diameter wheels. 11 1/4” wide wheel faces for 12” wide x 42’-0” long band saws standard. Blade length can be changed to customer’s needs. Wheel face can be changed to meet the customer needs. Does not include saw blades.

MACHINE SPECIFICATIONS

• Two Piece Base and Column Assemblies
• Extended column available for tilted machines or for larger throat opening.
• 6’ steel Premier Bandwheels with Cleereman exclusive dead shaft design for a smoother running mill
• High-speed dynamically balanced for speeds up to 12,500 SFPM standard, allowing for the band-mill to run at higher RPM’s than cast wheels with less vibration than any competitor’s wheel design
• Oversized 7’ SKF Double Row Spherical Bearing Standard on all 6’ Mills
• Air Strain with Dial Adjustment
• Hydraulic Operated Top Guide Lift with dual support towers, THK Linear Bearing and Rails for increased cutting accuracy and minimal maintenance.
• Powered Top Wheel Lift and Tilt (Hydraulic or Electric)
• Outer Lower Safety Sliver Guide
• Band Saw Cleaning and Lubricating Wick Box with Felt Wiper
• HPU – 20 HP, 16 GPM Hydraulic Power Pack, with 30 Gallon Reservoir, Valves and Manifold
• Cartridge Type Upper and Lower Pressure Guide
• Extra Set of Cartridge Type Guide Blocks in Holders
• Cartridge Type Guide Block Dressing Machine with Dressing Fixture Included
• D. Off-Bearer Belt with Hydraulic drive
• Hydraulically Operated Pivoting Top Wheel Guard
• Customer using existing 200HP Electric Motor (need motor specs for adjustable base)
• Adjustable Motor Base, Motor Sheave, Driven Sheave, Matched V Belts and Steel Belt Guard.
• Bio-Lube 4 Nozzle Saw Lubrication System with 55-gallon Drum of Saw Lube
• Approximate weight is 32,000 lbs

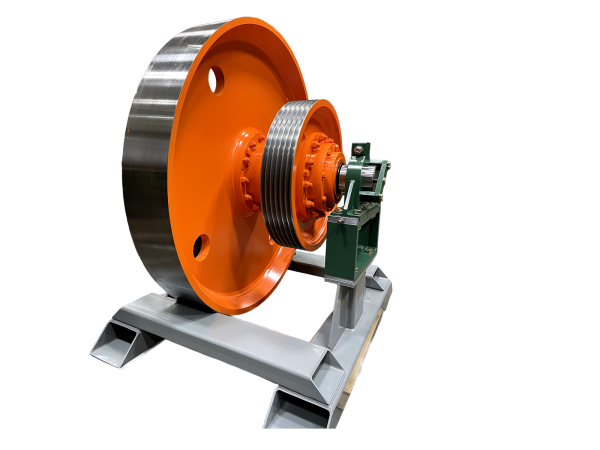

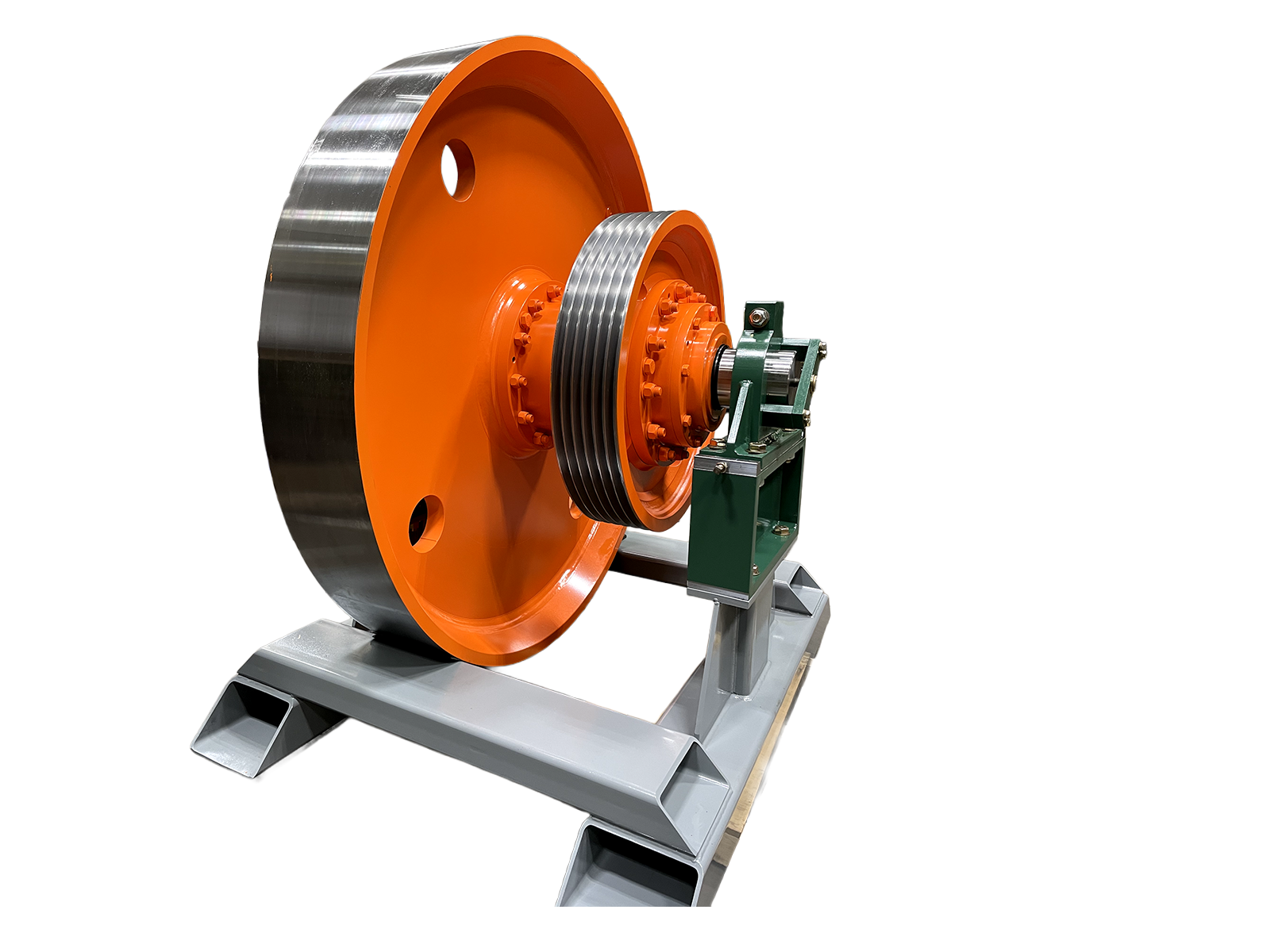

Bottom Wheel with Dead Shaft                      Top Idler Wheel Assembly

• 7’ Oversized SKF bearings Standard on 6’ mills
• Cleereman’s bottom wheel design will run more stable with cooler bearing temperatures. The shaft and bearings used in both bottom and top wheels are rated for 50,000# of strain load.
• The bottom shaft deflection is non-rotating compared to the other manufactures live wheel design causing them to have heat and vibration.

Options

• All bandmills come single or double cut versions
• Tilted or Vertical Bandmill
• Sawdust Containment system
• Electric or Hydraulic Drive
• Heavy Duty Sub-Steel Riser Package

Specifications

CL54” – 8” wide by 32’ long saw blade comes standard with 125HP Motor

CL62” – 12” or 14″ wide by 36’ long saw blade comes standard with 200HP Motor
