Lumber Pro/Saw Mill Packages

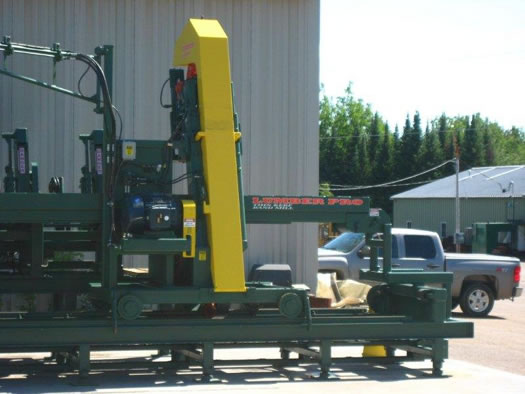

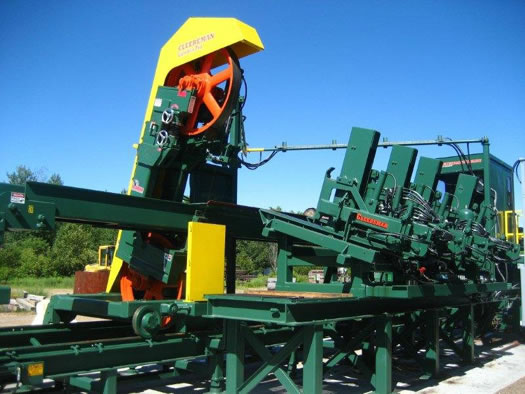

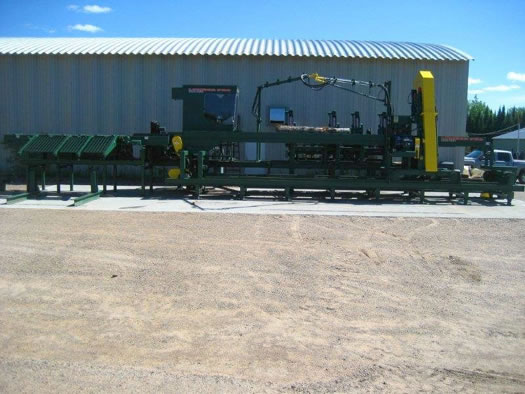

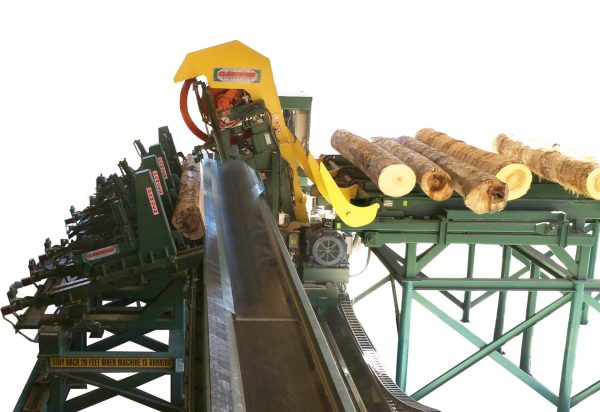

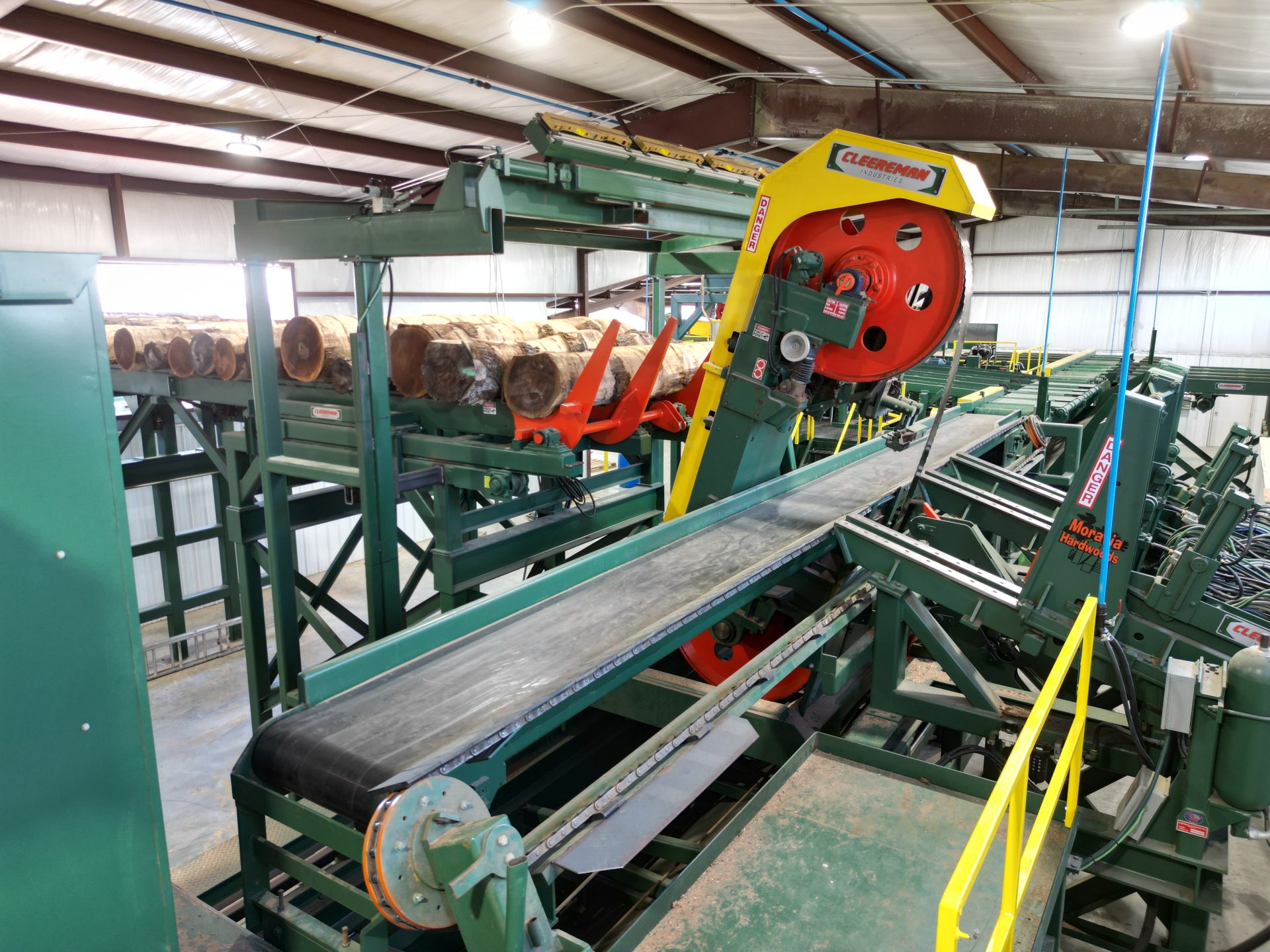

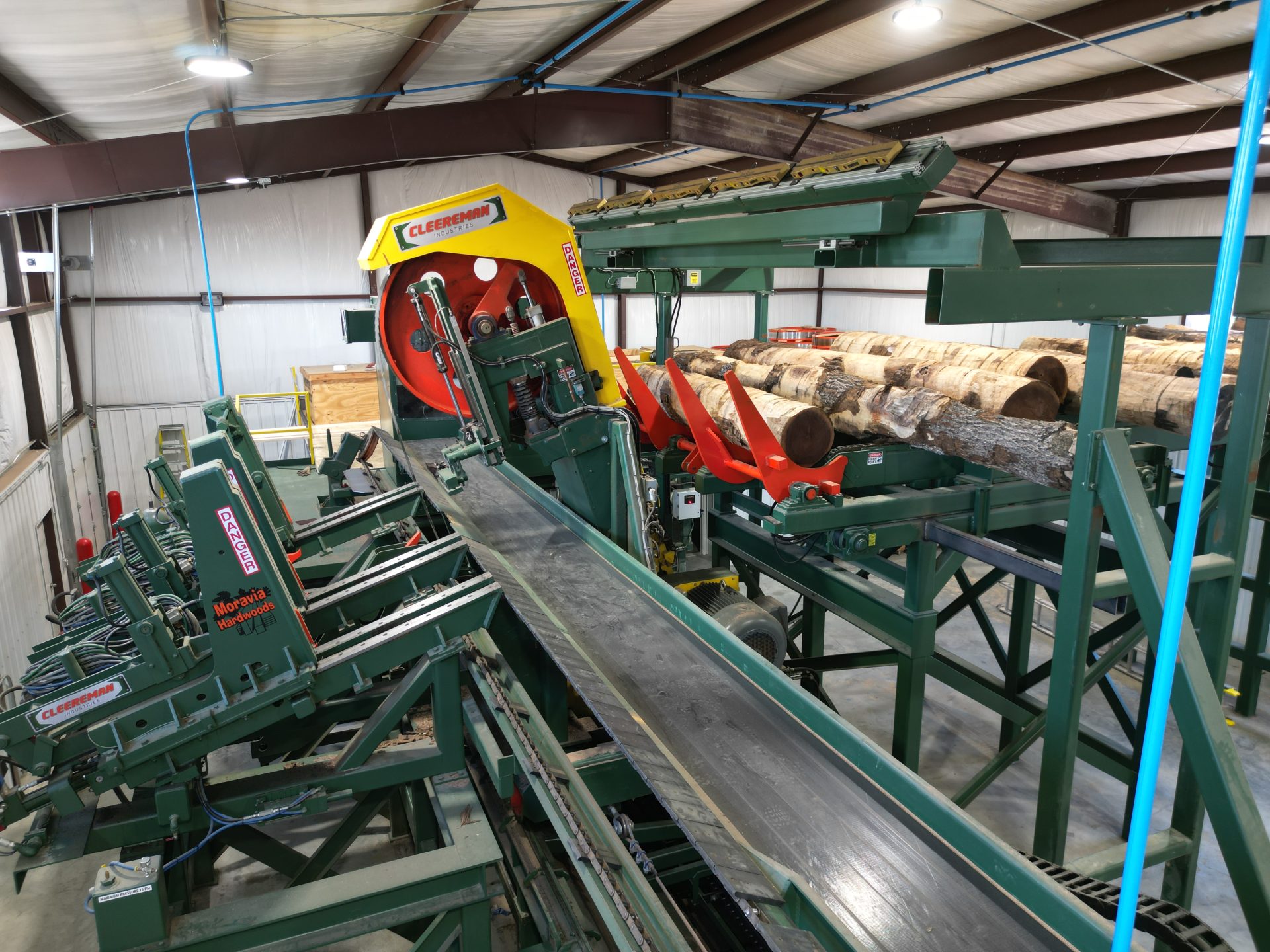

ST 54 Lumber Pro Thin Kerf Band Mill
The Lumber Pro sawmill was designed to cut high grade lumber with a thin kerf saw for increased yield. In addition, Cleereman Industries’ focus was to design a mill package that was easy to install and could be cutting lumber in a short amount of time. By packaging this in larger sections, we can now pre-wire and pre-plumb the mill at our factory, greatly reducing installation costs as well as the need for electricians and fabricators in the field.
Features & Benefits
- 17° Stationary carriage many options available
- High performance air, hydraulic, or hydraulic linear setworks with Brownsville turners and Chain turners

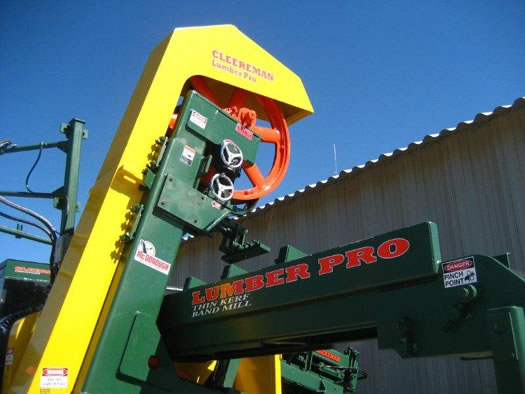

- 54″ thin kerf bandsaw capable of using 8″ double cut blade

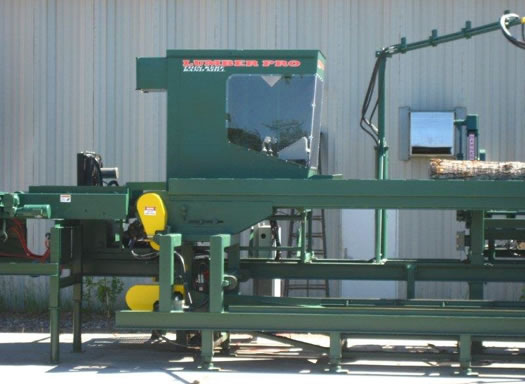

- Deluxe sawyer’s booth that is pre-wired and pre-plumbed
- Pre-plumbed 50 HP power unit
- Full length lumber and waste conveyors
- Motor control center
- Waste System
Specifications
| Capacity: | 18′ log maximum length 41″ carriage opening 20″ x 20″ cant capacity on the conveyor belt | |
| Log Position: | Model HS380 Hydraulic Setshaft Carriage standard | |
| Log Turning: | Brownsville turner and rotary bar turner | |

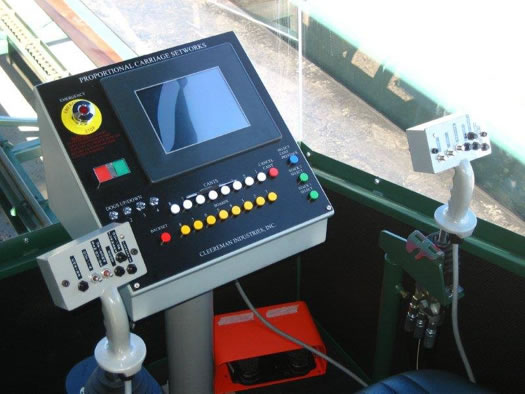

| Setworks: | Cleereman Controls computerized setworks standard | |

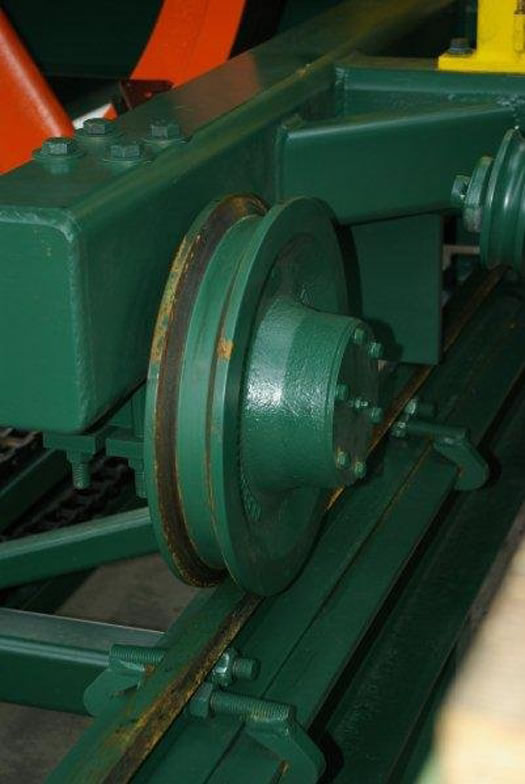

| Saw Shuttle: | Heavy wall 8″ box tube construction | |
| Saw Blades: | 8″ Double cut w/ blade lenght of 32′ | |
| Board Conveyor: | 26″ wide continuous belt through throat | |
| Waste Conveyor: | Built in removable panning with drag chainHydraulic motor driven | |
| Shuttle Feed: | Hydraulic cable drum with remote control joystick | |
| Cutting Speed: | Variable | |
| Maximum Speed: | 300 FPM | |
| Cable Size: | 5/8″ | |
| Cable Tensioning: | Hydraulic tensioner | |
| HPU: | 40HP with pressure comp pump | |
| Electrical: | All inclusive MCC cabinet for mill functions | |

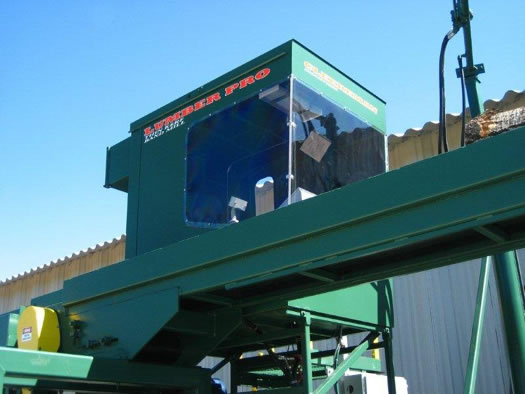

| Sawyer’s Cab: | 4’6″ x 6′ pre-wired and pre-plumbed |
