Bottom Pivot 42 Bar Turner

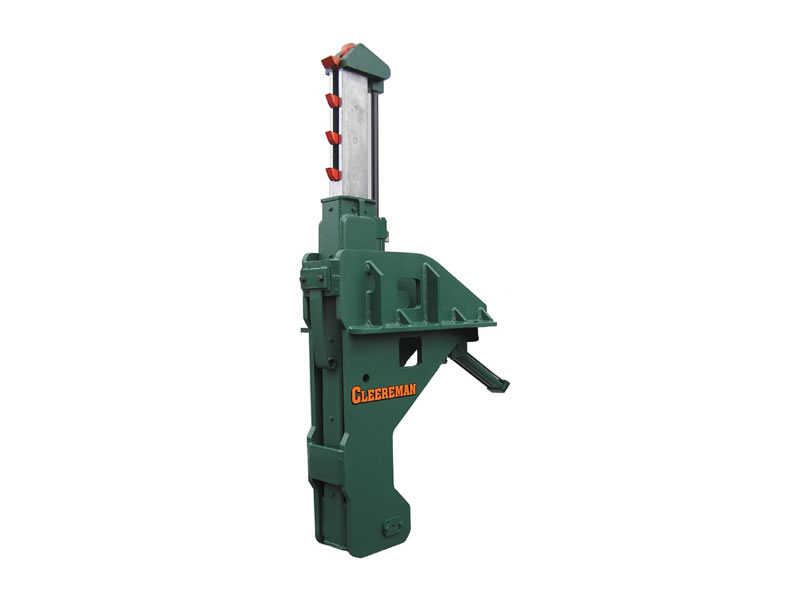

The Cleereman Heavy Duty Bottom Pivot Log Turner utilizes the same robust components as the Standard Bar Log Turner, but was designed for mills that had structural supports that prevented a Standard Bar log turner from swinging under the track frame.
Features & Benefits
- Heavy duty fabricated 1-1/2″ steel main frame
- Stress relieved, fully machined T1 alloy steel turner bar
- 2-1/2″ bore, cushioned cylinders with 1-3/4″ nitrited rods, 5/8″ tie rods and 1-3/8″ mounting pin
- Heavy duty cylinder clevis with 1-3/4″ stress proof pins
- 2-15/16″ main pivot pins with 3/8″ thick, hardened, replaceable, flanged, pivot bushings
- Long lasting full length replaceable phenolic wearstrips
Options
- Center pivot style log turner assembly

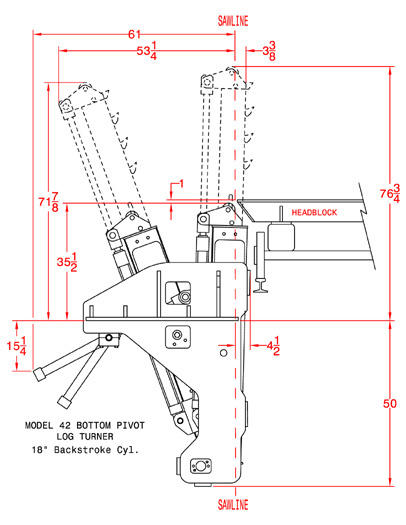

- 12″, 15″ and 18″ backstroke cylinders to accommodate varying stop and load locations
