Hydraulic Carriage Drives
Model 50 HP Hydraulic

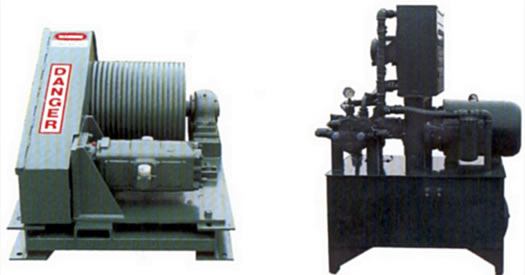

The Model 50 HP Hydraulic carriage drive combines a simple design with quality components to provide years of trouble free operation and good carriage control. The drive package includes an easy to mount drum package, a free standing hydraulic power unit and a remote mounted hydraulic joystick and telescoping stand to make it easy to install in any existing mill.
This drive provides excellent control when used with small to midsized carriages.
Specifications
| Max Carriage Weight: | 6,500 lbs | |
| Cable Speed: | 700 feet per minute | |
| Cable Pull: | 2600 lbs | |
| Oil Capacity: | 100 gallons | |
| Pump Flow: | 69 GPM at 1500 PSI Max. | |
| Electric Motor: | 50 HPTEFC at 1800 RPM | |
| Drum Size: | 16″ Diameter, 2-15/16″ Diameter Shaft | |
| Cable Diameter: | 5/8″ | |
| Cooling: | Air | |
| Remote Control: | Hydraulic or Electric |
* Drive is complete except for oil and wire rope.
