Hydraulic Cable Tightener
Cleereman Hydraulic Cable tightener has been specially designed to eliminate cable slap and provide exceptional cable tensioning for large carriages and high horse power drives in severe applications. This extremely rugged tensioner will provide years of trouble free operation and substantially increases cable life.
Features & Benefits
- 3 HP Hydraulic Power Unit – Wide range of pressure settings
- Heavy-Duty Tubular Guide System – Will last the life of your mill
- Replaceable Synthetic Guide Material – Can be replaced to maintain new tolerances
- Heavy-Duty hydraulic Cylinder – Low maintenance/longevity
- Large 34” Diameter Shaves – Larger radius for increased cable life
Options
- Single Sheave 34” grooved for up to 1” Cable

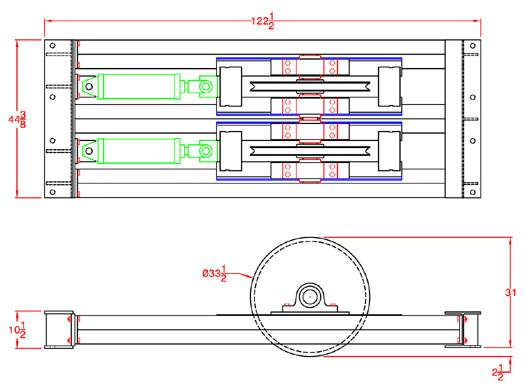

- Double Sheave 34” grooved for up to 1” Cable
Specifications
- Shave Size/Diameter: 34 Grooves
- Bearings & Shaft: 3 15/16” Pillow Block Bearing & 3 15/16” Shaft
- Cylinder Size: Bore 5”, Stroke 16”
- Range of Travel: 16”
- Pressure Range: 100 psi – 1000 psi
- 8 Gallon Hydraulic Tank
- 3 HP Motor
- 3 GPM Pump
- 5 Gallon Accumulator
