Cable Tighteners & Sheaves

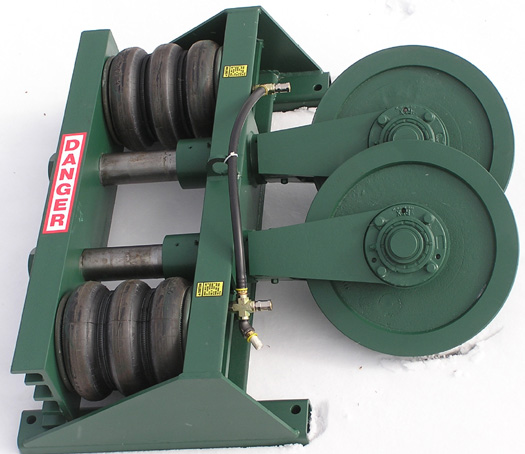

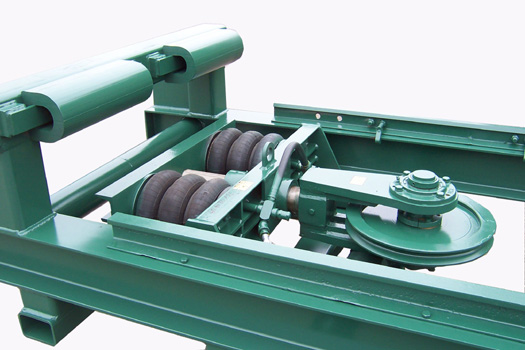

AirBag Cable Tightener
Cleereman Air Bag Cable Tighteners have been proven to significantly increase cable life and decrease cable slap in numerous mills no matter the size carriage or cable. Maintaining proper cable tension but still allowing a cushion for hard starts and stops make these cable tensioners the ultimate cable solution.
Features & Benefits
- Heavy duty construction – low maintenance & low wear
- Replaceable brass bushings – Rebuildable
- Pivoting sheave assemblies – Self aligning for better cable wear
- Heavy duty cross shafts and bearings – Reliability and longevity
- High quality industrial air bags – No leaks or blowouts
- Relief valves – Protects air bags from pressure spikes
- Air regulator – Allows any tensioner to be set perfectly for any weight carriage
Options
- Dual sheave cable tightener
- Hydraulic cable tighteners
- Single sheave cable tightener
Specifications
- Sheave Sizes: 20”, 22”, 24”, 26”, 32”
- Sheaves Shaft Size: 2 15/16”
- Bearing: 2 15/16” piloted flange
- Air Bags: 13” and 15” depending on model
Dimensions
PDF Files will open in a new tab/window

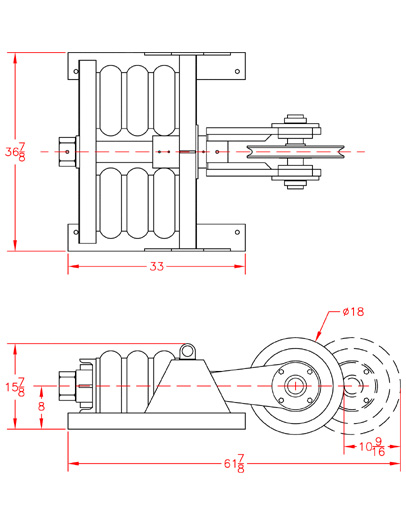

18″ Single Cable Tightener Dimensions
