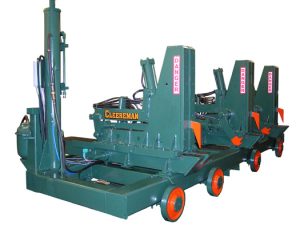

Air Setwork Carriages – Model AS420

The AS420 is the original hybrid. Designed with your future in mind, this carriage is built as an economical air-set carriage, but with the ability to convert to hydraulic proportional or even linear positioning at a later date. Perfect for start up operations working within tight budgets, it also adds value if sold used, allowing potential buyers to easily get the exact style of carriage desired.

Several options are available to meet your requirements for layout, production, log and cant turning, and maintenance.

Other Air Setwork Carriages

  • Built from heavy-duty, thick-wall structural steel components – Rigid, accurate
  • Horizontal or Tilt Frame – Meets customer needs, easily integrated into existing systems
  • Two to five headblocks set at customer specified spacing – Meets customer needs for log lengths and mixes
  • Larger/heavier than the 360 and 380 Series – Longer life, less maintenance, higher production
  • Heavy-duty fabricated 3/4” bunks utilize long lasting 5/8” alloy steel wear plates – can be replaced to extend overall carriage life
  • Knees are precision fabricated from 1” solid steel bases and two 1/2” side plates – longer lasting, more durable
  • Knees attach to bunks with a wrap-around mount for stability – extremely accurate lumber, high durability, less maintenance
  • Adjustable, replaceable synthetic wear strips on the top, bottom, and sides of knee mounts – maintains perfect fit, easy maintenance, long life
  • Adjustable rack and pinion knee positioning – Precise, eliminates excessive maintenance of chain drives
  • 1” Thick T1 alloy steel tong-dogs are center mounted within the knees – Increased accuracy from exceptional positioning and security.
  • Standard 5 ½ HP air motor is precise and faster than the standard motor – Accurate lumber, higher production.
  • 15 to 1 reducer and air brake transmission system – fast and accurate positioning, high production, straight lumber
  • 5 easily adjusted automatic lumber thickness set points – Product flexibility, easy to use
  • Large, easy-to-read dial – Clearly indicates knee position for quick cutting decisions
  • OSHA approved air lock-out assembly – Increased employee safety
  • Easy to access grease fittings, oversized oil cups – Easy maintenance
  • Two, three, and four head block carriages available
  • Any head block spacing available to meet customer’s specific requirements
  • Custom built frames to meet elevation challenges
  • Custom tilted frames
  • Custom built for future linear conversion
  • Built in rub rail
  • Anti derailer
  • Axles through the frame
  • Custom axles centers to fit existing rail centers
  • Custom wheel machining to match existing rail profile
  • Extra wheel and axle assemblies
  • Plastic wheels
  • 14” wheels and 2 ¾” axles
  • Brownsville turners
  • Side mount turners
  • 3 Position face plates
  • Cant push offs
  • Board push offs
  • Double bit hammer dog
  • Custom cable hook ups
  • Dual cable equalizer systems
  • Shot gun bracket
  • Valve heaters
  • Track and wheel cleaners
  • Pressurized lube system for wheels and rail
  • Automatic injection lube system for knees, wheels and rail
  • Blow offs
  • Nitride Process wear plates
  • Chromed wear plates
  • Carriage Frame is 1/2″ wall 6″ x 8″ tube on front & 1/2″ wall 4″ x 8″ tube on back, welded into a one piece frame for extreme durability and maximum strength.
  • Upgradeable to a Proportional or Linear positioning carriage
  • Axles are 2 1/2″ Solid square with 58″ wheel centers
  • Wheels are 12″ Steel with Timken tapered roller bearings
  • Ratchet cable tightener on front end and cable hook-up on the back end
  • Heavy duty fabricated bunks with 3/4″ sides
  • Long lasting Alloy steel wearplates 5/8″ thick
  • Adjustable rack & pinion on each knee provides for maximum accuracy
  • Knees: 1″ base & 1/2″ sides with center dog construction
  • Grease fittings on dog hinge pins & oil cups on knee base
  • Fully adjustable sandwich plate design uses replaceable wearstrips on top, sides and bottoms of wearplates to maintain a perfect fit
  • 5″ infinite tapers
  • Dogs: 1″ thick, heat treated T1 Alloy steel for excellent log holding performance
  • 5.5 HP air motor and 15-1 reducer for outstanding power
  • T-1000 air brake ensures perfect accuracy
  • 5 easy to adjust thicknesses
  • 1/32 set wheel
  • Mac air valves
  • Wilkerson coalescing filter & lubricator
  • Easy to see lumber dial mounted on pantograph pole
  • Top quality air cylinders designed and built for rugged sawmill environment
  • Sawyers console and handles mounted on telescoping stand for easy installation
  • Extremely high quality electrical cable between the console and the carriage for better flexibility, durability and longevity.
  • OSHA required air lock-out assembly

PDF Printable Dimensions

Features & Benefits
  • Built from heavy-duty, thick-wall structural steel components – Rigid, accurate
  • Horizontal or Tilt Frame – Meets customer needs, easily integrated into existing systems
  • Two to five headblocks set at customer specified spacing – Meets customer needs for log lengths and mixes
  • Larger/heavier than the 360 and 380 Series – Longer life, less maintenance, higher production
  • Heavy-duty fabricated 3/4” bunks utilize long lasting 5/8” alloy steel wear plates – can be replaced to extend overall carriage life
  • Knees are precision fabricated from 1” solid steel bases and two 1/2” side plates – longer lasting, more durable
  • Knees attach to bunks with a wrap-around mount for stability – extremely accurate lumber, high durability, less maintenance
  • Adjustable, replaceable synthetic wear strips on the top, bottom, and sides of knee mounts – maintains perfect fit, easy maintenance, long life
  • Adjustable rack and pinion knee positioning – Precise, eliminates excessive maintenance of chain drives
  • 1” Thick T1 alloy steel tong-dogs are center mounted within the knees – Increased accuracy from exceptional positioning and security.
  • Standard 5 ½ HP air motor is precise and faster than the standard motor – Accurate lumber, higher production.
  • 15 to 1 reducer and air brake transmission system – fast and accurate positioning, high production, straight lumber
  • 5 easily adjusted automatic lumber thickness set points – Product flexibility, easy to use
  • Large, easy-to-read dial – Clearly indicates knee position for quick cutting decisions
  • OSHA approved air lock-out assembly – Increased employee safety
  • Easy to access grease fittings, oversized oil cups – Easy maintenance
Options
  • Two, three, and four head block carriages available
  • Any head block spacing available to meet customer’s specific requirements
  • Custom built frames to meet elevation challenges
  • Custom tilted frames
  • Custom built for future linear conversion
  • Built in rub rail
  • Anti derailer
  • Axles through the frame
  • Custom axles centers to fit existing rail centers
  • Custom wheel machining to match existing rail profile
  • Extra wheel and axle assemblies
  • Plastic wheels
  • 14” wheels and 2 ¾” axles
  • Brownsville turners
  • Side mount turners
  • 3 Position face plates
  • Cant push offs
  • Board push offs
  • Double bit hammer dog
  • Custom cable hook ups
  • Dual cable equalizer systems
  • Shot gun bracket
  • Valve heaters
  • Track and wheel cleaners
  • Pressurized lube system for wheels and rail
  • Automatic injection lube system for knees, wheels and rail
  • Blow offs
  • Nitride Process wear plates
  • Chromed wear plates
Specifications & Dimensions
  • Carriage Frame is 1/2″ wall 6″ x 8″ tube on front & 1/2″ wall 4″ x 8″ tube on back, welded into a one piece frame for extreme durability and maximum strength.
  • Upgradeable to a Proportional or Linear positioning carriage
  • Axles are 2 1/2″ Solid square with 58″ wheel centers
  • Wheels are 12″ Steel with Timken tapered roller bearings
  • Ratchet cable tightener on front end and cable hook-up on the back end
  • Heavy duty fabricated bunks with 3/4″ sides
  • Long lasting Alloy steel wearplates 5/8″ thick
  • Adjustable rack & pinion on each knee provides for maximum accuracy
  • Knees: 1″ base & 1/2″ sides with center dog construction
  • Grease fittings on dog hinge pins & oil cups on knee base
  • Fully adjustable sandwich plate design uses replaceable wearstrips on top, sides and bottoms of wearplates to maintain a perfect fit
  • 5″ infinite tapers
  • Dogs: 1″ thick, heat treated T1 Alloy steel for excellent log holding performance
  • 5.5 HP air motor and 15-1 reducer for outstanding power
  • T-1000 air brake ensures perfect accuracy
  • 5 easy to adjust thicknesses
  • 1/32 set wheel
  • Mac air valves
  • Wilkerson coalescing filter & lubricator
  • Easy to see lumber dial mounted on pantograph pole
  • Top quality air cylinders designed and built for rugged sawmill environment
  • Sawyers console and handles mounted on telescoping stand for easy installation
  • Extremely high quality electrical cable between the console and the carriage for better flexibility, durability and longevity.
  • OSHA required air lock-out assembly

PDF Printable Dimensions
