Air Setwork Carriages – Model AS380

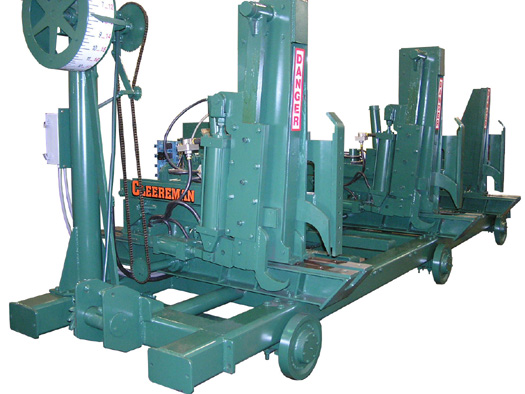

The Cleereman AS380 larger and heavier than the 360 Series. The AS380 is designed to last for decades of day to day use. It’s designed and built using the best manufacturing practices, modern high-grade materials and quality components, so it can be counted on to be accurate, productive, dependable, and profitable.

Several options are available to meet your requirements for layout, production, log and cant turning, and maintenance.

Other Air Setwork Carriages

  • Built from heavy-duty, thick-wall structural steel components – Rigid, accurate
  • Horizontal or Tilt Frame – Meets customer needs, easily integrated into existing systems
  • Two to five headblocks set at customer specified spacing – Meets customer needs for log lengths and mixes
  • Larger/heavier than the 360 Series – Longer life, less maintenance, higher production
  • Heavy-duty fabricated bunks utilize long lasting alloy steel wear plates – can be replaced to extend overall carriage life
  • Knees are precision fabricated from 3/4” solid steel – longer lasting, more durable
  • Adjustable rack and pinion knee positioning – Precise, eliminates excessive maintenance of chain drives
  • T1 alloy steel tong-dogs – Holds log tightly in place for straight lumber
  • Optional 5 ½ HP air motor is precise and faster than the standard motor – Accurate lumber, higher production.
  • 5 easily adjusted automatic lumber thickness set points – Product flexibility, easy to use
  • Large, easy-to-read dial – Clearly indicates knee position for quick cutting decisions
  • OSHA approved air lock-out assembly – Increased employee safety
  • Synthetic wear-strips on knee bases, fully adjustable face plates – Provides accuracy, long life
  • Easy to access grease fittings, oversized oil cups – Easy maintenance
  • Two, three, four and five head block carriages available
  • Any head block spacing available to meet customer’s specific requirements
  • Custom built frames to meet elevation challenges
  • Custom tilted frames
  • Wrap around knee and head block package
  • Custom built for future Linear conversion
  • Built in rub rail
  • Anti de-railer
  • Axles through the frame
  • Custom axle centers to fit existing rail centers
  • Custom wheel machining to match existing rail profile
  • Extra wheel and axle assemblies
  • 14” wheels and 2 ¾” axles
  • Plastic wheels
  • Brownsville turners
  • Bottom dog turners
  • Cant push offs
  • Cant flippers
  • Single bit hammer dog
  • Lumber dial on the setworks
  • Custom cable hook ups
  • Dual cable equalizer systems
  • Shot gun bracket
  • Valve heaters
  • Track and wheel cleaners
  • Pressurized lube system for wheels and rail
  • Automatic injection lube system for knees, wheels and rail
  • Blow off systems
  • Carriage Frame is 1/2″ wall 6″ x 6″ tube on front & 1/2″ wall 4″ x 6″ tube on back, welded into a one piece rigid frame for extreme durability and maximum strength
  • Axles are 2 1/2″ Solid square with 50″ wheel centers
  • Wheels are 12″ Steel with Timken tapered roller bearings
  • Ratchet cable tightener on front end and cable hook-up on back end
  • Heavy duty fabricated bunks with long lasting Alloy steel wear plates
  • Adjustable rack and pinion on each knee provides for maximum accuracy
  • Knees are 3/4″ x 7″ base & 3/4″ upright with grease fittings installed for dog hinge pins
  • Replaceable synthetic wearstips under the knees and oversized oil cups
  • 5″ Infinite tapers and fully adjustable face plates to ensure perfect squareness
  • Dogs: 3/4″ Thick, heat treated T1 Alloy steel for excellent log holding performance
  • 3 HP air motor and 15-1 reducer for outstanding power
  • T-1000 air brake ensures perfect accuracy
  • 5 easy to adjust thicknesses
  • 1/32″ set wheels
  • Mac air valves
  • Wilkerson coalescing air filter & lubricator
  • Easy to see lumber dial mounted on pantograph pole
  • Sawyers console and handles mounted on telescoping stand for easy installation
  • Extremely high quality electrical cable between the console and the carriage for better flexibility, durability and longevity
  • OSHA required air lock-out assembly

AS380

PDF Printable Dimensions

Features & Benefits
  • Built from heavy-duty, thick-wall structural steel components – Rigid, accurate
  • Horizontal or Tilt Frame – Meets customer needs, easily integrated into existing systems
  • Two to five headblocks set at customer specified spacing – Meets customer needs for log lengths and mixes
  • Larger/heavier than the 360 Series – Longer life, less maintenance, higher production
  • Heavy-duty fabricated bunks utilize long lasting alloy steel wear plates – can be replaced to extend overall carriage life
  • Knees are precision fabricated from 3/4” solid steel – longer lasting, more durable
  • Adjustable rack and pinion knee positioning – Precise, eliminates excessive maintenance of chain drives
  • T1 alloy steel tong-dogs – Holds log tightly in place for straight lumber
  • Optional 5 ½ HP air motor is precise and faster than the standard motor – Accurate lumber, higher production.
  • 5 easily adjusted automatic lumber thickness set points – Product flexibility, easy to use
  • Large, easy-to-read dial – Clearly indicates knee position for quick cutting decisions
  • OSHA approved air lock-out assembly – Increased employee safety
  • Synthetic wear-strips on knee bases, fully adjustable face plates – Provides accuracy, long life
  • Easy to access grease fittings, oversized oil cups – Easy maintenance
Options
  • Two, three, four and five head block carriages available
  • Any head block spacing available to meet customer’s specific requirements
  • Custom built frames to meet elevation challenges
  • Custom tilted frames
  • Wrap around knee and head block package
  • Custom built for future Linear conversion
  • Built in rub rail
  • Anti de-railer
  • Axles through the frame
  • Custom axle centers to fit existing rail centers
  • Custom wheel machining to match existing rail profile
  • Extra wheel and axle assemblies
  • 14” wheels and 2 ¾” axles
  • Plastic wheels
  • Brownsville turners
  • Bottom dog turners
  • Cant push offs
  • Cant flippers
  • Single bit hammer dog
  • Lumber dial on the setworks
  • Custom cable hook ups
  • Dual cable equalizer systems
  • Shot gun bracket
  • Valve heaters
  • Track and wheel cleaners
  • Pressurized lube system for wheels and rail
  • Automatic injection lube system for knees, wheels and rail
  • Blow off systems
Specifications & Dimensions
  • Carriage Frame is 1/2″ wall 6″ x 6″ tube on front & 1/2″ wall 4″ x 6″ tube on back, welded into a one piece rigid frame for extreme durability and maximum strength
  • Axles are 2 1/2″ Solid square with 50″ wheel centers
  • Wheels are 12″ Steel with Timken tapered roller bearings
  • Ratchet cable tightener on front end and cable hook-up on back end
  • Heavy duty fabricated bunks with long lasting Alloy steel wear plates
  • Adjustable rack and pinion on each knee provides for maximum accuracy
  • Knees are 3/4″ x 7″ base & 3/4″ upright with grease fittings installed for dog hinge pins
  • Replaceable synthetic wearstips under the knees and oversized oil cups
  • 5″ Infinite tapers and fully adjustable face plates to ensure perfect squareness
  • Dogs: 3/4″ Thick, heat treated T1 Alloy steel for excellent log holding performance
  • 3 HP air motor and 15-1 reducer for outstanding power
  • T-1000 air brake ensures perfect accuracy
  • 5 easy to adjust thicknesses
  • 1/32″ set wheels
  • Mac air valves
  • Wilkerson coalescing air filter & lubricator
  • Easy to see lumber dial mounted on pantograph pole
  • Sawyers console and handles mounted on telescoping stand for easy installation
  • Extremely high quality electrical cable between the console and the carriage for better flexibility, durability and longevity
  • OSHA required air lock-out assembly
