Economical setworks system designed for a linear carriage. Utilizing the latest in off the shelf PLC components to provide a full featured yet simple to use and maintain controls systems. Upgradable to include 3D log scanning.
Cleereman Controls
- Features:
- 4 species.
- 8 Boards and 8 Cant set sizes per species.
- 8 Stack sizes with 5 pieces each per species.
- Operator configurable handle button functions.
- 4 cutting options.
- Live Saw.
- Cant Fill.
- Stack Fill.
- Back set.

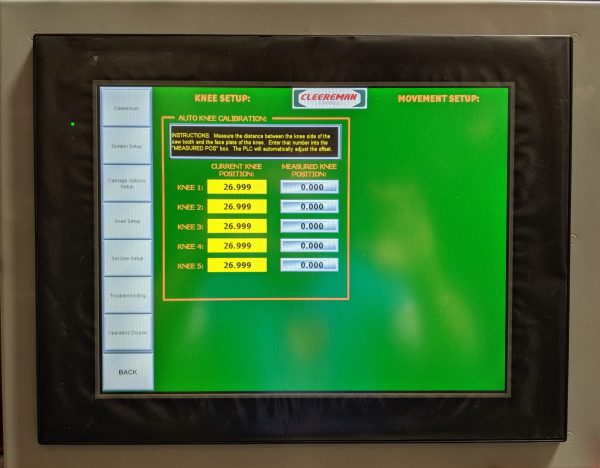

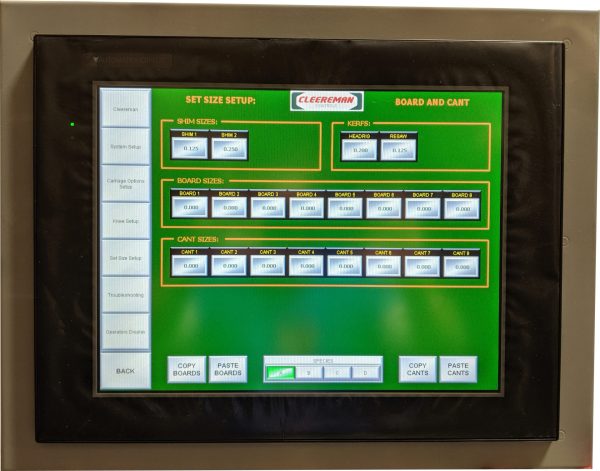

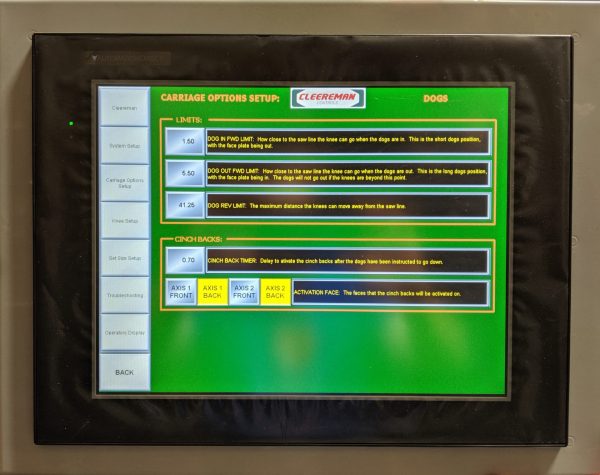

- Intuitive HMI screens for machine setup, system timing, troubleshooting and sawyers run time cutting display.
- Coordinated knee skewing for location and speed.
- Control Features:
- Dogs
- On Carriage Turners
- Pushers
- Oiler
- Brake
- Cant Pan
- Slab Drop
- Deck
- Log Loader
- Cinch Backs
- Low pressure dogs
Hardware:
- Off the shelf PLC components
- Delta RMC
- MTS SSI Probe
- 15” Cmore HMI
- Sure Grip Handles
Scanner:
- JoeScan 3D laser technologies
- Industrial computer
- Slabber Head Controls
- Additional Axis
- Downstream Dispatch
- Scanning & Optimization
